CAS No.: 20592-85-2 (x-Na), 2235-43-0
(5-Na)
Molecular Formula: C3H7NO9P3Na5
Molecular weight: 409

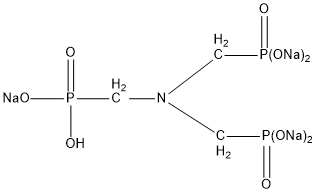

Structural Formula:
Properties:
ATMP•Na5
is the salt of ATMP, it can inhibit calcium carbonate particularly
in water treatment system . ATMP•Na5 can be used in circulating
cool system in power plant, oil refinery plant and oilfield refill
water system . ATMP•Na5 is a general low cost scale inhibitor, it
has good corrosion inhibition to zinc salt and phosphate, its chelating
ability is good as well.
Specification:
| Items |
Index |
| Appearance |
Colorless or light yellow transparent liquid |
| Active content
(ATMP)%
|
27.8-30.7 |
| Active content
(ATMP•Na5) % |
38.0-42.0 |
| Total phosphoric
acid(PO43-)
% |
26.6-28.6 |
| Chloride (as Cl-)
% |
1.0
max |
| PH (1% water
solution) |
10.0-11.0 |
| Fe, mg/L |
10.0
max |
| Density (20℃) g/cm3 |
1.38-1.48 |
Usage:
ATMP•Na5 is used together with other organophosphonic
acid, polycarboxylic acid or salt to form organic alkaline agents.
ATMP•Na5can be used in circulating cool water system for all water
quality.
Package and Storage:
Normally In 250kg net Plastic Drum, IBC drum can
also be used as required. Storage for twelve months in room shady and
dry place.
